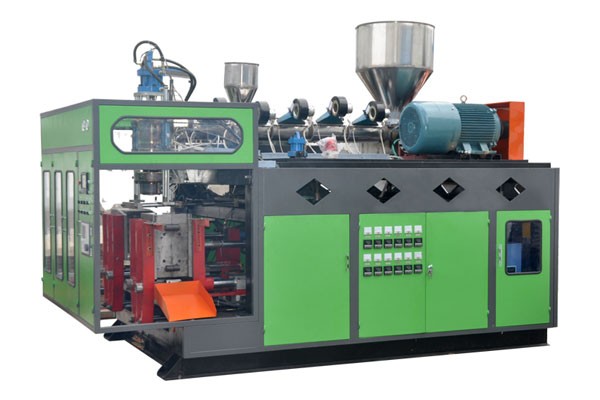

HT-70D Blow Molding Machine

Product Description

HT-70A Full Automatic Extrusion Blow Moulding Machine is one-step method, one-time moulding, pneumatic, and featrued with automatic cut. It is suitable for producing PP, PVC, PE, AS and other hollow plastic containers and bottles in all shapes from 5 ML to 5000 ML. These machine are widely used to produce the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefits. For its good quality and our perfect service, it's your best choice to use it.

Technical Parameter

Model HT-70D
Suitable Materials PE.PP.AS…
Theoretical Output 400 Pcs/h(5L)
Product Volume 1腔5L
Die Head Amount 1Piece
Work Station Amount 2Piece
Extrusion Unit
Screw Diameter 70mm
Auxiliary Screw Diameter 30mm
Screw L/d Ratio 25:1/23:1  L/D
Auxiliary Screw L/d Ratio 25:01:00
Screw Speed 10-50 r/min
Plasticizing Capacity 70 kg/h
Mould Unit
Cavity &set 1cavity2sets
Max. Bottle Diameter 140mm
Max. Mold Size 380*410mm/330*650mm
Mobile Template Trip 110-300
Clamping Force 85KN
Power Unit
Electrical Source 220-380V,3phase 50-60Hz
Heating Power 10KW
Oil Pump Motor 5.5kw
Screw Motor 18.5KW
Average Energy Consumption 17KW
Air Pressure 0.7Mpa
Machine Size 2940*1960*1880mm
Machine Weight 3500
Auxiliary Equipments
Low Pressure Air Compressor 1.6m3/1.0Mpa/15KW
Crusher Machine 1set 60
Mixing Machine  1set 200kg
