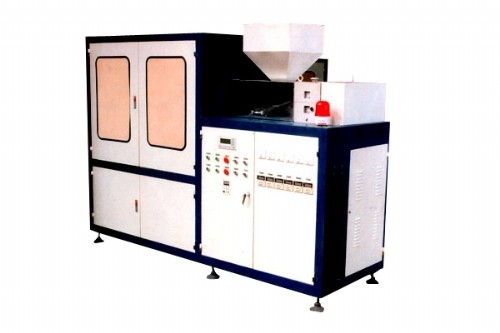

HT-35A Common Machine

Product Description

HT-35A Full Automatic Extrusion Blow Moulding Machine is one-step method, one-time moulding, pneumatic, and features automatic cut. It is suitable for producing PP, PVC, PE, AS and other hollow plastic containers and bottles in all shapes from 5 ML to 350 ML, This machine is widely used to produce the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc. Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit. For its good quality and our perfect service, it’s your best choice to use it .HT-35A has two die heads and four stations.

Technical Parameter

Model HT-35A
Suitable Materials PE,PP,PC,PVC,AS...
Theoretical Output Depend on bottle design 4000Pcs/h(350ML)
Max. Product Volume 1cavity 350ML
Die Head Amount Piece 2
Work Station Amount Piece 4
Extrusion Unit Screw Diameter 35mm
Screw L/D Ratio 22:1 L/D 20:1 L/D
Screw Speed 10~90r/min
Plasticizing Capacity 25kg/h
Mould Unit 1 Cavity 4 Sets 1 Cavity 4 Sets
Max. Bottle Diameter 40mm
Mould Thickness 40~70mm
Mold  Board  Stroke 70mm
Clamping Force 25KN
Power Unit Electrical Source 220/380V,3phase 50/60Hz
Heating Power 5Kw
Motor 4Kw
Average Energy Consumption 4.5Kw
Air Pressure 0.5Mpa
Machine Size L*W*H 2500*1340*1780mm
Machine Weight 1000kg
Auxiliary Equipments Low Pressure Air Compressor  1 Set   (requisite) 1.6m/ 1.0MPa /15kw
Air Dryer 1 Set (optional) 1.0m/ 3.0MPa / 375KW
Air Filter 2 Set (optional) 1.0m/ 3.0MPa
